Folium Integration

The latent-calendar library provides seamless integration with Folium to display interactive calendar heatmaps as map popups. This is perfect for visualizing temporal patterns across geographic locations.

Installation

To use the Folium integration, install the library with the optional dependencies:

pip install latent-calendar[html,folium]

This installs:

  • altair>=5.0.0 - For generating interactive HTML calendar charts
  • folium>=0.14.0 - For creating interactive maps

Quick Start

Here's a minimal example showing UFO sightings in California:

import folium
from latent_calendar.datasets import load_ufo_sightings
from latent_calendar.integrations.folium import create_calendar_popup

# 1. Load and aggregate data by state
df = load_ufo_sightings()
df_states = df[df['country'] == 'us'].cal.aggregate_events(
    by='state/province',
    timestamp_col='Date_time'
)

# 2. Get California's weekly pattern (168 values)
california_data = df_states.loc['ca']

# 3. Create an interactive popup
popup = create_calendar_popup(
    california_data,
    title="California UFO Sightings",
    width=400,
    height=280,
    color_scheme='blues'
)

# 4. Add to map
m = folium.Map(location=[36.7, -119.7], zoom_start=6)
folium.Marker(
    location=[36.7, -119.7],
    popup=popup,
    tooltip="Click to see calendar"
).add_to(m)

m.save('california_ufos.html')

Understanding the Data Format

The Folium integration works with the wide format produced by .cal.aggregate_events():

  • Input: A Series or DataFrame row with 168 values (7 days × 24 hours)
  • Calendar columns: Multi-index with (day_of_week, hour) pairs
  • Values: Event counts or any numeric data for each time slot

Example:

>>> df_states.loc['ca']
day_of_week  hour
0            0       45
             1       32
             ...
6            23      67
Name: ca, dtype: int64

API Overview

The integration provides four main functions:

  • create_calendar_popup() - Creates interactive popups (most common)
  • create_calendar_tooltip() - Creates compact hover tooltips
  • create_popup_html() - Generates HTML strings (advanced)
  • create_tooltip_html() - Generates tooltip HTML (advanced)

For complete API documentation with all parameters and options, see the Folium Integration API Reference.

Complete Example: UFO Sightings Map

This example shows the recommended workflow - aggregating UFO sightings by state and displaying them on an interactive map with calendar popups. The complete code is available in examples/folium_ufo_sightings.py.

Requirements:

pip install latent-calendar[html,folium] requests us

Complete code:

"""Interactive map showing weekly UFO sighting patterns by state."""
import folium
import requests
import us  # For state name/abbreviation mapping
from latent_calendar.datasets import load_ufo_sightings
from latent_calendar.integrations.folium import create_calendar_popup

# 1. Load and aggregate UFO sightings by state
print("Loading UFO sightings data...")
df = load_ufo_sightings()

# Filter to US sightings and clean state codes
df_us = df[df['country'] == 'us'].copy()
df_us['state/province'] = df_us['state/province'].str.lower().str.strip()

# Aggregate to weekly calendar format (7 days × 24 hours = 168 time slots)
df_states = df_us.cal.aggregate_events(
    by='state/province',
    timestamp_col='Date_time'
)
print(f"Aggregated data for {len(df_states)} states")

# Calculate total sightings per state for choropleth coloring
state_totals = df_states.sum(axis=1).to_dict()

# 2. Load US states GeoJSON
print("Fetching US states GeoJSON...")
geojson_url = 'https://raw.githubusercontent.com/python-visualization/folium-example-data/main/us_states.json'
geo_data = requests.get(geojson_url).json()

# 3. Create map centered on US
m = folium.Map(location=[37.8, -96], zoom_start=4, tiles='cartodbpositron')

# 4. Add calendar popup to each state polygon
print("Adding state popups...")
for feature in geo_data['features']:
    state_name = feature['properties']['name']

    # Convert state name to abbreviation
    state_obj = us.states.lookup(state_name)

    if state_obj:
        state_abbr = state_obj.abbr.lower()

        if state_abbr in df_states.index:
            # State has data - create calendar popup
            calendar_data = df_states.loc[state_abbr]
            total = int(state_totals[state_abbr])

            popup = create_calendar_popup(
                calendar_data,
                title=f"UFO Sightings in {state_name}",
                width=400,
                height=280,
                color_scheme='blues',
                show_values=False  # Faster rendering
            )

            # Color by total sightings
            if total > 5000:
                fill_color = '#08519c'  # Dark blue
            elif total > 1000:
                fill_color = '#3182bd'
            else:
                fill_color = '#9ecae1'  # Light blue

            folium.GeoJson(
                feature,
                style_function=lambda x, color=fill_color: {
                    'fillColor': color,
                    'fillOpacity': 0.6,
                    'color': 'black',
                    'weight': 1
                },
                popup=popup,
                tooltip=state_name
            ).add_to(m)

# 5. Save map
m.save('ufo_sightings_map.html')

What this creates:

  • Click any state to see its weekly UFO sighting pattern
  • States are colored by total sightings (darker = more sightings)
  • Calendar heatmap shows day-of-week vs hour-of-day patterns
  • Hover to see state names

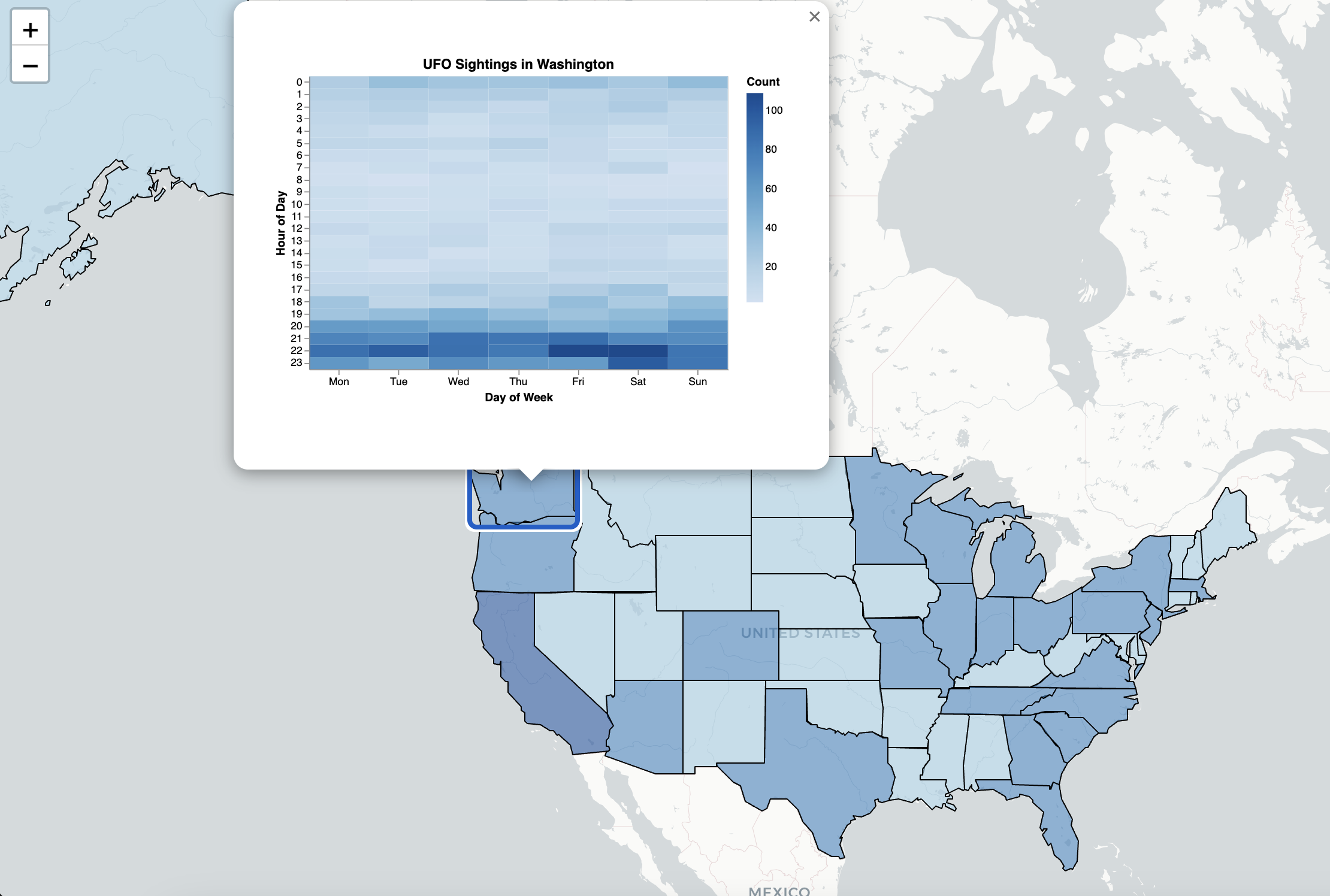

UFO Sightings - Washington State Example: Clicking on Washington shows evening spikes in UFO sightings (8-11 PM)

Customization tips:

  • Change color_scheme='blues' to 'viridis', 'greens', etc.
  • Set show_values=True to display counts in calendar cells
  • Adjust width and height for different popup sizes
  • Use monday_start=False for Sunday-first weeks

Simple Marker Example

For a quick test with a single location:

import folium
from latent_calendar.datasets import load_ufo_sightings
from latent_calendar.integrations.folium import create_calendar_popup

# Aggregate by state
df = load_ufo_sightings()
df_states = df[df['country'] == 'us'].cal.aggregate_events(
    by='state/province',
    timestamp_col='Date_time'
)

# Create popup for California
popup = create_calendar_popup(
    df_states.loc['ca'],
    title="California UFO Sightings",
    color_scheme='blues'
)

# Add to map
m = folium.Map(location=[36.7, -119.7], zoom_start=6)
folium.Marker([36.7, -119.7], popup=popup).add_to(m)
m.save('california_map.html')

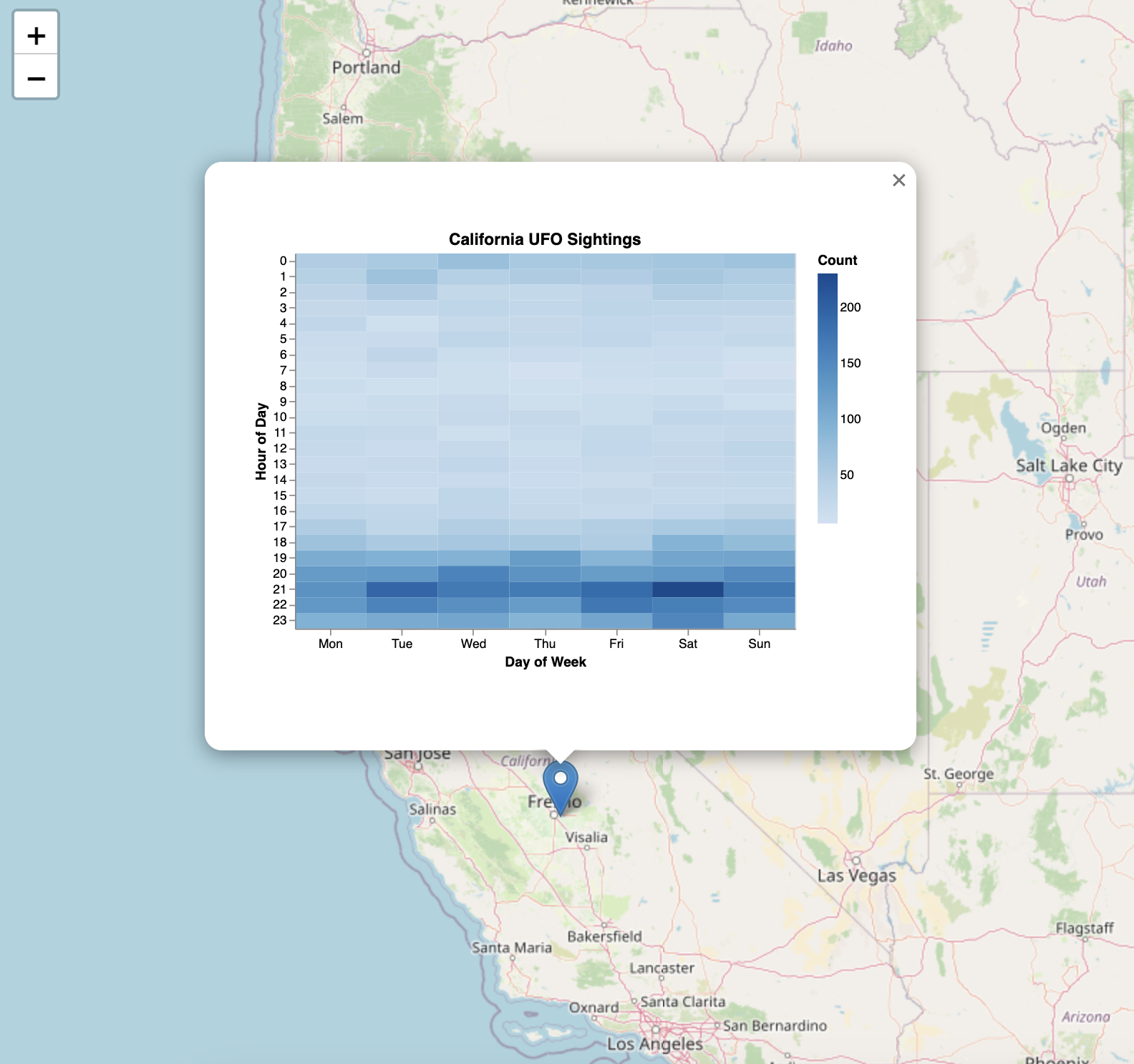

UFO Sightings - California Marker Simple marker showing California's UFO sighting pattern - notice the evening peak on Saturday nights

Performance Optimization

For maps with many popups, consider these optimizations:

1. Reduce Chart Dimensions

popup = create_calendar_popup(
    data,
    width=350,   # Smaller than default 500
    height=250   # Smaller than default 350
)

2. Hide Cell Values

popup = create_calendar_popup(
    data,
    show_values=False  # Removes text labels from cells
)

3. Disable Interactivity (if not needed)

popup = create_calendar_popup(
    data,
    interactive=False  # Removes zoom/pan controls
)

Example Results: - 50 US states with full interactivity: ~880 KB - 50 states with show_values=False: ~870 KB - 50 states with smaller dimensions: ~750 KB

Use Cases

1. Geographic Time-Series Analysis

Visualize how temporal patterns vary across locations (e.g., crime patterns by neighborhood, sales patterns by store location).

2. Event Distribution Maps

Show when and where events occur throughout the week (e.g., taxi pickups, bike rentals, restaurant reservations).

3. Operational Analytics

Display operational patterns for facilities or regions (e.g., call center activity, manufacturing output, customer service requests).

4. Research Visualization

Present research findings with interactive geographic context (e.g., social media activity, environmental sensors, mobile app usage).

Advanced Customization

Custom Color Schemes

Use any Altair/Vega color scheme:

# Sequential schemes
color_scheme='blues', 'greens', 'reds', 'purples', 'greys', 'oranges'

# Perceptual schemes
color_scheme='viridis', 'plasma', 'inferno', 'magma', 'cividis'

# Diverging schemes
color_scheme='redblue', 'redgrey', 'blueorange'

Sunday Week Start

popup = create_calendar_popup(
    data,
    monday_start=False  # Week starts on Sunday
)

Multiple Popups on Same Map

for location, data in zip(locations, datasets):
    popup = create_calendar_popup(data, title=location)
    folium.Marker(location, popup=popup).add_to(map)

Technical Details

How It Works

The integration uses three key technologies:

  1. Altair: Generates interactive Vega-Lite charts as standalone HTML documents
  2. Folium IFrame: Embeds HTML documents using base64 encoding
  3. Calendar Grid: Transforms 168-value wide format into 7×24 heatmap

Data Flow:

User Data → .cal.aggregate_events() → 168 columns
→ wide_to_long_format() → Altair Chart → HTML Document
→ folium.IFrame → folium.Popup

The IFrame Solution

The implementation uses folium.IFrame to properly embed full HTML documents:

iframe = folium.IFrame(html, width=max_width, height=height+80)
popup = folium.Popup(iframe, max_width=max_width)

This creates proper isolation between the map's HTML and the chart's HTML, preventing rendering issues in browsers.

Troubleshooting

Issue: Raw JavaScript visible in popup

Cause: Old implementation passed HTML directly to folium.Popup() Solution: Update to latest version that uses folium.IFrame

Issue: Chart not displaying

Cause: Missing optional dependencies Solution: pip install latent-calendar[html,folium]

Issue: Calendar has wrong dimensions

Cause: Data not in 168-column format Solution: Ensure data comes from .cal.aggregate_events() with default parameters

Issue: Popup too small

Cause: Default max_width is too small Solution: Increase max_width parameter:

popup = create_calendar_popup(data, max_width=800)
